Photo Album: Basement Waterproofing Chantilly Virginia

This basement in Chantilly Virginia was poorly insulated and was allowing water to leak in from outside. Our Certified Home Performance Sales Pro Pedro visited and did a free inspection before designing a project to help make the basement dry and clean with better air quality in the home. Water Guard was installed with Trench Lock at the doorway along with a new Sump Pump, Foamax wall insulation and spray Foam in the rim joists of the home. This will all lead to better water control in the basement and a more comfortable home.

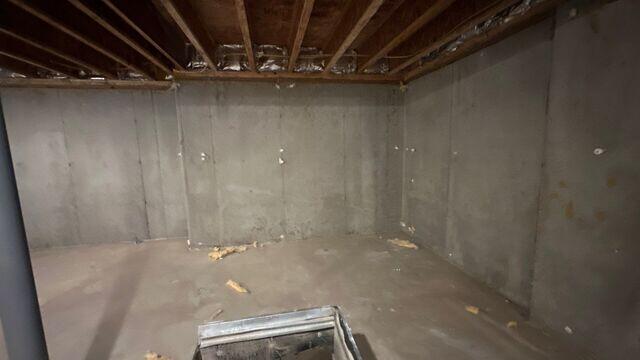

Leaking Basement Walls

The walls in this basement had water coming in through several small and large cracks.

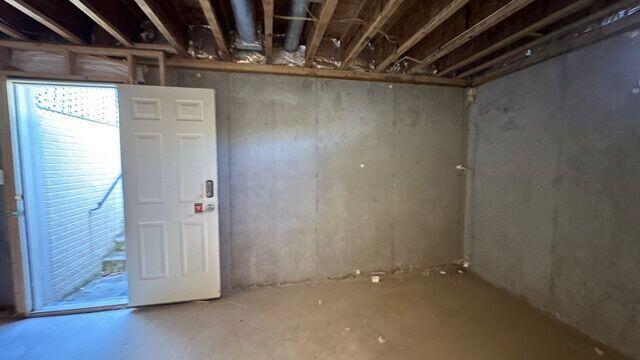

Leaking Basement Walls

Water was coming through the walls and at time through the door when it rained heavily.

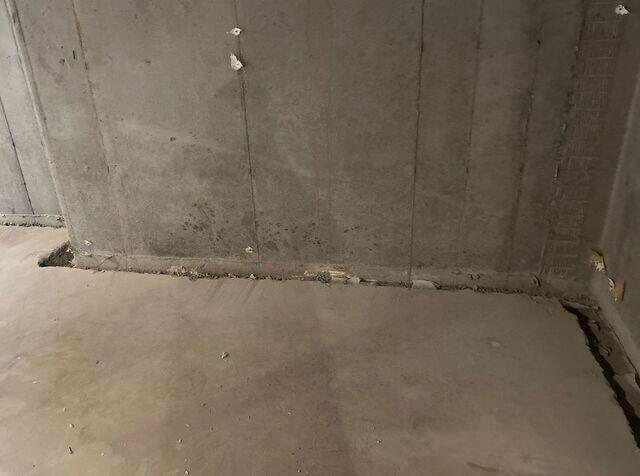

Water Guard System

The floors were opened up with a jack hammer in order to install the Water Guard system below.

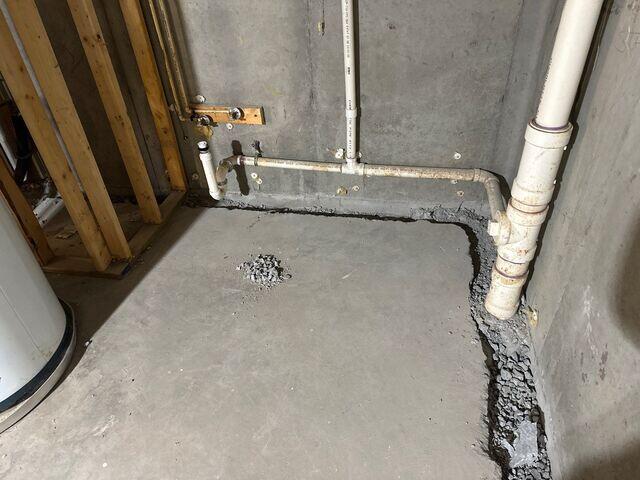

Sub Floor Waterproofing

Work in progress as the floors are worked on to create a space for Water Guard installation.

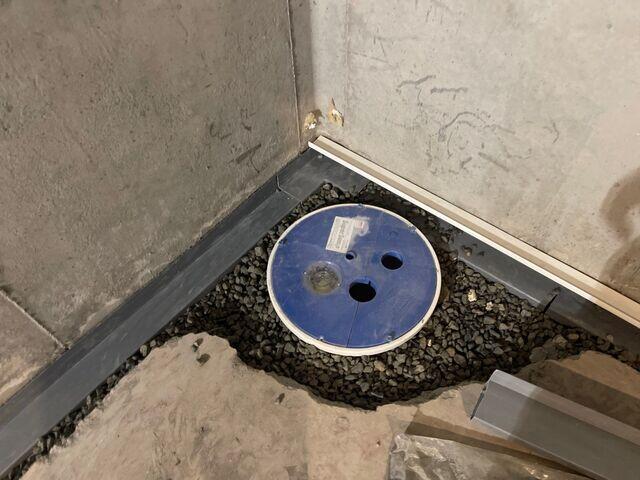

Sump Pump and Water Guatrd

The sump pump basin was set in the lowest spot in the basement and is fed by the Water Guard system collecting water from below the walls of the basement.

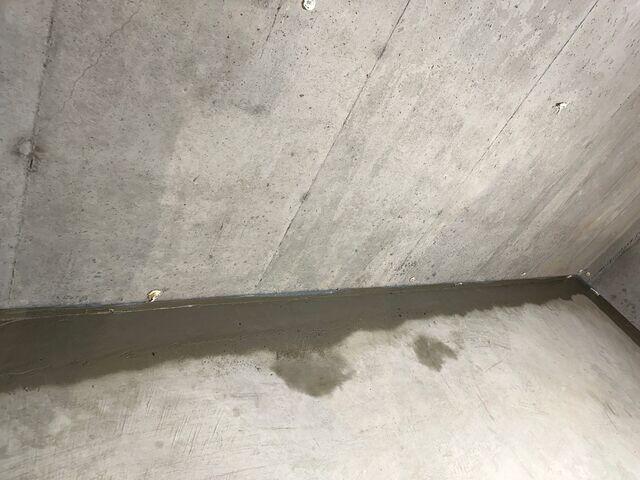

Sub Floor Waterproofing

One installed below the floor, Waterguard is covered with fresh concrete.

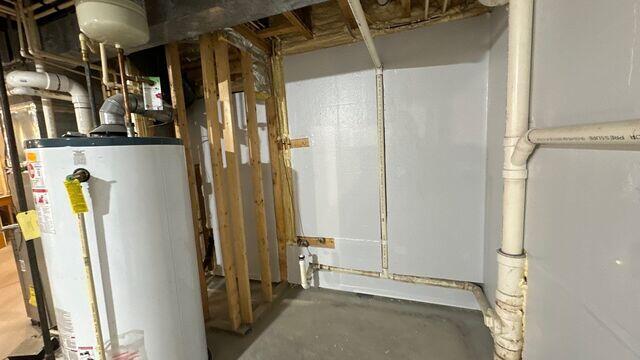

Basement Waterproofing

Foamax insulation panels cover the walls and Water Guard below the floors delivers unwanted basement water to the new Sump Pump to be discharged out of the home.

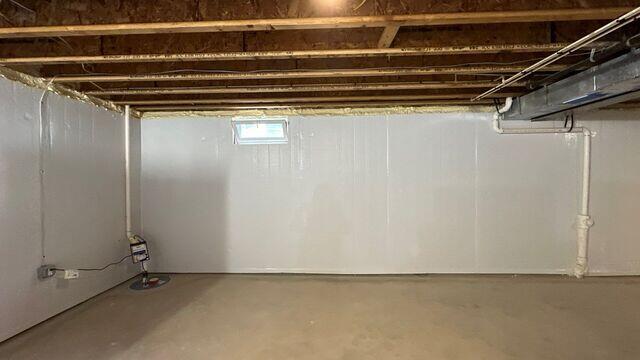

Basement Waterproofing

This basement will be drier and more comfortable with insulated walls and spray foam in the rim joists to keep external air from coming in.

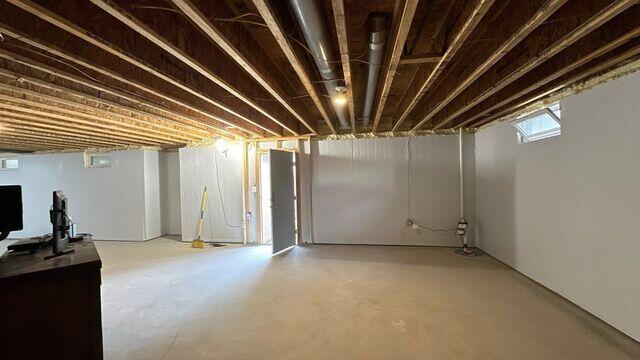

Basement Waterproofing

A cleaner and drier basement will be the result of this project.

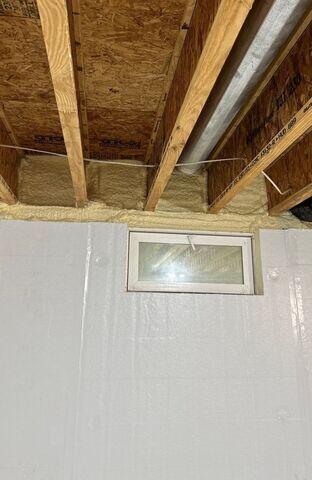

Spray Foam

The rim joists in this basement were filled with spray foam insulation. This will help keep external air, dust and allergens from coming into the home.
